Description

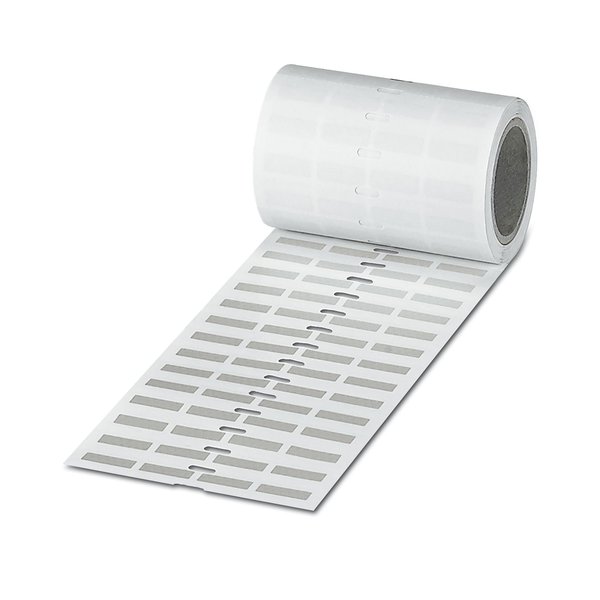

Phoenix Contact 0800343 — EMLS (19X6)R SR. Manufacturer designation: EMLS (19X6)R SR – Safety label with special adhesive – 0800343. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800343 |
| Product Category | Terminals & Connectors |
| Product type | Device marker |
| Product property | tamper-proof |
| Number of individual labels | 2500 |
| Identification technology | Thermal transfer |
| Width | 19.00 mm |
| Height | 6.00 mm |
| Depth | 0.06 mm |
| Text field width | 19 mm |
| Text field height | 6 mm |
| Color | silver-colored |
| Base element material | Polyester |
| Components | free from silicone and halogen |
| Result | Test passed |
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Rating 125 °C (150 °C) | Test passed |
| N -Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2] | Test passed |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
