Description

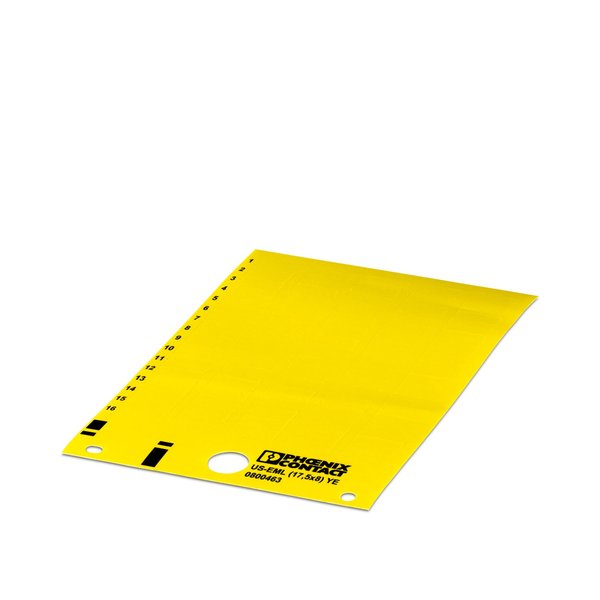

Phoenix Contact 0800463 — US-EML (17. Manufacturer designation: US-EML (17,5X8) YE – Label – 0800463. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0800463 |
| Product Category | Terminals & Connectors |
| Product type | Device marker |
| Number of individual labels | 80 |
| Identification technology | Thermotransfer, UV-LED-Technologie |
| Width | 17.50 mm |
| Height | 8.00 mm |
| Depth | 0.06 mm |
| Text field width | 17.5 mm |
| Text field height | 8 mm |
| RoHS compliant | yes |
| Color | yellow (RAL 1018) |
| Base element material | Polyester |
| Components | free from silicone and halogen |
| Ambient temperature (operation) | -40 °C … 150 °C |
| Recommended humidity (storage/transport) | 50 % |
| Result | Test passed |
| Specification | DIN EN ISO 4892-2:2021-11 (following) |
| Test duration | 96 h |
| N -Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Procedure | Method B |
| Mounting type | adhesive |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
