Description

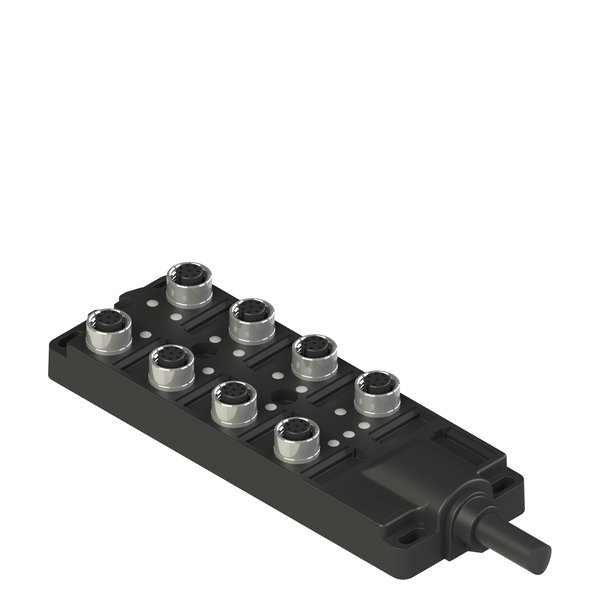

Pizzato BC 2Z8A3A1AL2 — BC series passive junction box. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Pizzato |
|---|---|
| Article No. (MPN) | BC 2Z8A3A1AL2 |
| Product Category | Enclosures & Junction Boxes |
| Product family | BC Series |
| Housing shape and material | Technopolymer housing 54 x 152 mm |
| Type and number of inputs | 8 M12 female 8-pole inputs |
| Supply voltage | 24 Vdc |
| Type of connection | Axial outlet PVC cable 2 x 0.75 mm² + 17 x 0.34 mm², length 2 m |
| Approvals | UE Declaration of Conformity, UKCA Declaration of Conformity |
| Condition | New & original |
| Availability | On request |
Download official Pizzato General Catalog (PDF)
Independent distributor — not an authorised Pizzato dealer. All parameters are taken from the official manufacturer documentation.
