Description

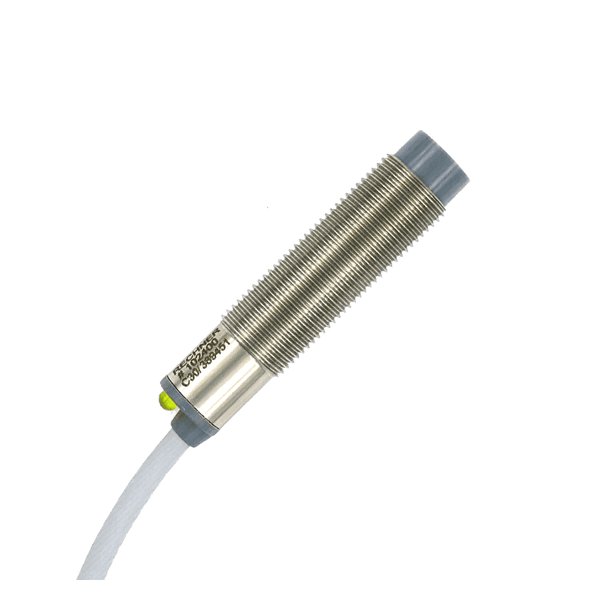

Rechner IAS-10-A22-S-M12-PA/VAb-Z02-0 — Inductive proximity sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | IAS-10-A22-S-M12-PA/VAb-Z02-0 |
| Article No. (MPN) | 102400 |
| Product Family | IAS-10 |
| Sensing distance (Sn) | 4 mm |
| Operating distance Sn | 4 mm |
| Operating voltage (UB) | 10…35 V DC |
| Voltage drop (Ud) | ≤ 2.5 V |
| Operating current (Ie) | 0…150 mA |
| No-load current (Io) | Typ. 15 mA |
| Switching frequency | max. 2 kHz |
| Output function | Normally open |
| Electrical version | 3-wire |
| Housing | M 12 x 1 |
| Housing material | Stainless steel VA No. 1.4305 (AISI 303) |
| Degree of protection | IP 67 |
| Ambient temperature | -25…+70 °C |
| Connection | cable 2 m, PUR, 3 x 0,14 mm² |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
