Description

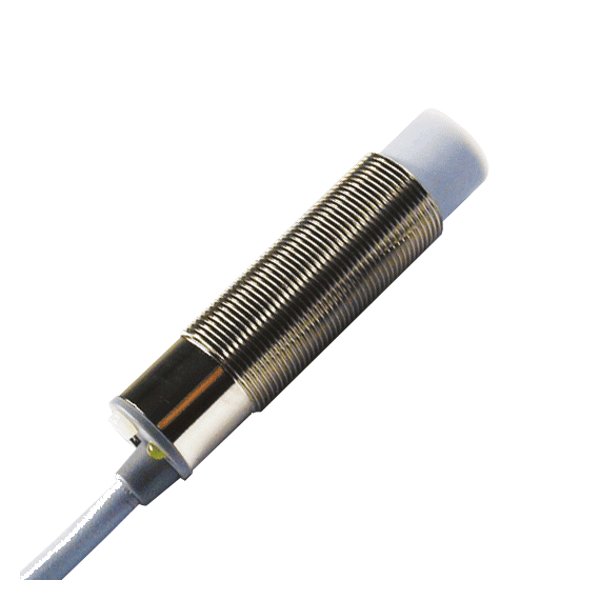

Rechner IAS-10-A23-IL20-M18-PTFE/VAb-Z02-1 — Inductive proximity sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | IAS-10-A23-IL20-M18-PTFE/VAb-Z02-1 |
| Article No. (MPN) | 108350 |
| Product Family | IAS-10 |
| Operating distance Sn | 0…8 mm |
| Operating voltage (UB) | 15…30 V DC |
| No-load current (Io) | Typ. 40 mA |
| Electrical version | 3-wire |
| Housing | M 18 x 1 |
| Housing material | Brass |
| Degree of protection | IP 67 |
| Ambient temperature | 0…+60 °C |
| Connection | cable 2 m, PUR, 3 x 0.34 mm² |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
