Description

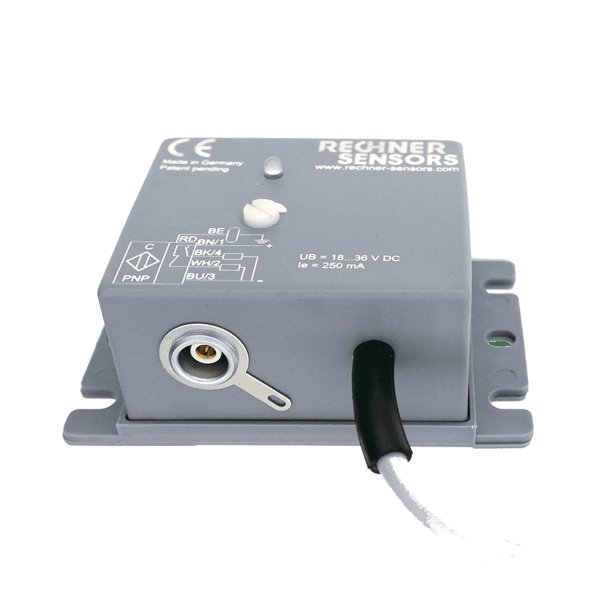

Rechner KXA-5-1-B-N-A-1-Z02-Y90 — Rechner sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KXA-5-1-B-N-A-1-Z02-Y90 |
| Article No. (MPN) | 498501 |
| Product Family | KXA-5 |
| Operating voltage (UB) | 18…36 V DC |
| Voltage drop (Ud) | < 2.5 V < 2.5 V |
| No-load current (Io) | Typ. 50 mA Typ. 50 mA |
| Switching frequency | max. 50 Hz 50 Hz |
| Output function | Antivalent |
| Electrical version | 4-wire |
| Housing material | PA PA |
| Degree of protection | IP 65 |
| Ambient temperature | -25…+55 °C |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
