Description

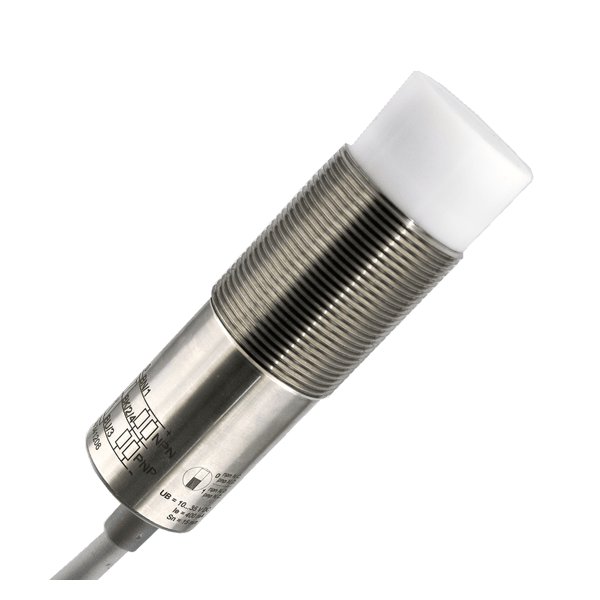

Rechner KAS-2000-35-P-M32-PTFE/VAb-160C-Z02-1 — Capacitive proximity sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-2000-35-P-M32-PTFE/VAb-160C-Z02-1 |
| Article No. (MPN) | 771100 |
| Product Family | KAS-2000 |
| Operating distance Sn | 15 mm |
| Voltage drop (Ud) | ≤ 2.0 V |
| Operating current (Ie) | 0…400 mA |
| No-load current (Io) | Typ. 15 mA |
| Switching frequency | max. 50 Hz |
| Output function | NO |
| Electrical version | 3-wire |
| Housing | M 32 x 1 |
| Housing material | Stainless steel VA No. 1.4305 (AISI 303) |
| Degree of protection | IP 67 |
| Ambient temperature | -60…+160 °C |
| Connection | cable 2 m, PUR, 3 x 0.75 mm² |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
