Description

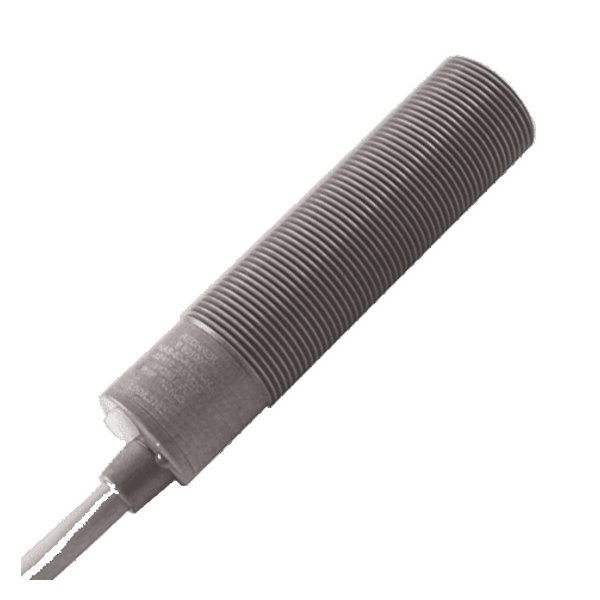

Rechner KAS-80-A13-A-M18-PBT-Z02-1-HP — Capacitive proximity sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-80-A13-A-M18-PBT-Z02-1-HP |
| Article No. (MPN) | 801000 |
| Product Family | KAS-80 |
| Operating distance Sn | 5 mm |
| Operating voltage (UB) | 10…35 V DC |
| Voltage drop (Ud) | ≤ 2.0 V |
| No-load current (Io) | Typ. 15 mA |
| Switching frequency | max. 300 Hz |
| Output function | Antivalent |
| Electrical version | 4-wire |
| Housing | M 18 x 1 |
| Housing material | PA / PPO |
| Degree of protection | IP 67 |
| Ambient temperature | -25…+70 °C |
| Connection | cable 2 m PVC, 4 x 0.34 mm² |
| Mounting | Flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
