Description

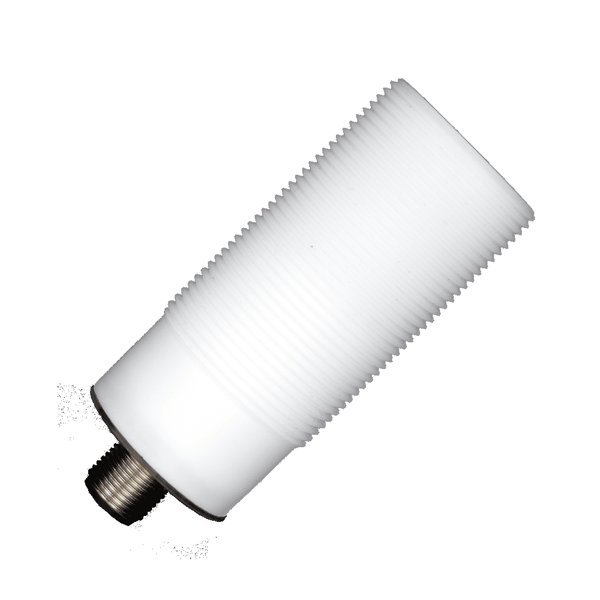

Rechner KAS-80-30-A-M32-PTFE-Y5-1-HP — Capacitive proximity sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-80-30-A-M32-PTFE-Y5-1-HP |
| Article No. (MPN) | 815833 |
| Product Family | KAS-80 |
| Operating distance Sn | 20 mm |
| Operating voltage (UB) | 10…35 V DC |
| Voltage drop (Ud) | ≤ 2.0 V |
| Operating current (Ie) | 2 x 0…250 mA |
| No-load current (Io) | Typ. 15 mA |
| Switching frequency | max. 200 Hz |
| Output function | Antivalent |
| Electrical version | 4-pin |
| Housing | M 32 x 1 |
| Housing material | PTFE |
| Degree of protection | IP 67 |
| Ambient temperature | -25…+70 °C |
| Mounting | Flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
