Description

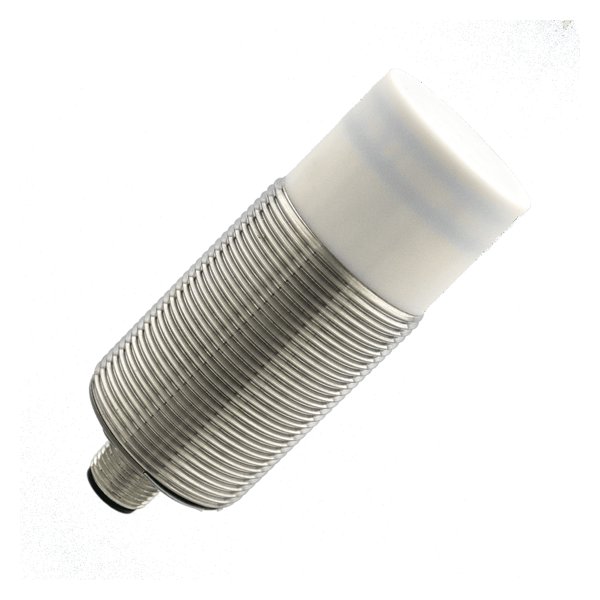

Rechner KAS-80-35-A-M32-PTFE/VAb-EST-Y10-1-HP — Capacitive proximity sensor. New original part; availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-80-35-A-M32-PTFE/VAb-EST-Y10-1-HP |
| Article No. (MPN) | 818159 |
| Product Family | KAS-80 |
| Operating voltage (UB) | 10…35 V DC |
| Voltage drop (Ud) | ≤ 2.0 V |
| Operating current (Ie) | 2 x 0…250 mA |
| No-load current (Io) | Typ. 15 mA |
| Switching frequency | max. 50 Hz |
| Output function | PNP |
| Housing material | Stainless steel VA No. 1.4305 / AISI 303 |
| Degree of protection | IP 67 |
| Ambient temperature | -25…+70 °C |
| Connection | M 32 x 1.5 |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. Parameters from the official Rechner datasheet.
