Description

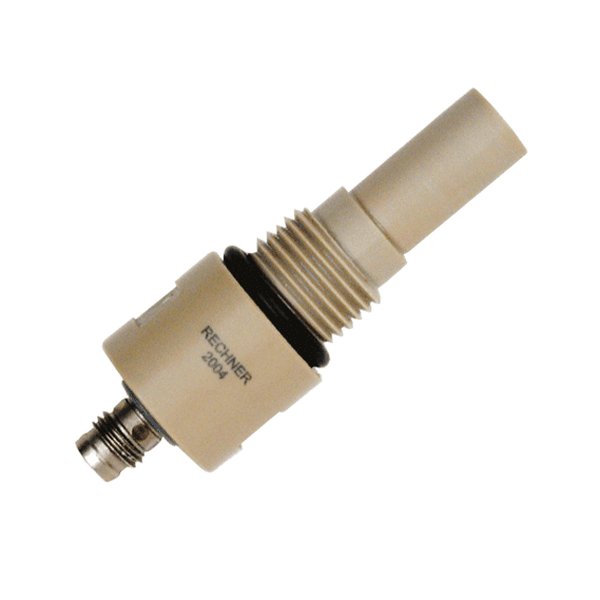

Rechner KAS-80-M16-S-M16-PEEK-Y7-1-E-HP — Capacitive Sensors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-80-M16-S-M16-PEEK-Y7-1-E-HP |
| Article No. (MPN) | KA0269 |
| Product Category | Sensors |
| Operating distance Sn | 4 mm |
| Operating voltage (UB) | 10…35 V DC |
| Operating current (Ie) | 0…250 mA |
| Output function | Normally open |
| Electrical version | 3-pin DC |
| Housing | M 16 x 1 |
| Housing material | PEEK |
| Degree of protection | IP 67 |
| Ambient temperature | -25…+100 °C |
| Connection | Flange connector M 8 x 1 |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. All parameters are taken from the official manufacturer documentation.
