Description

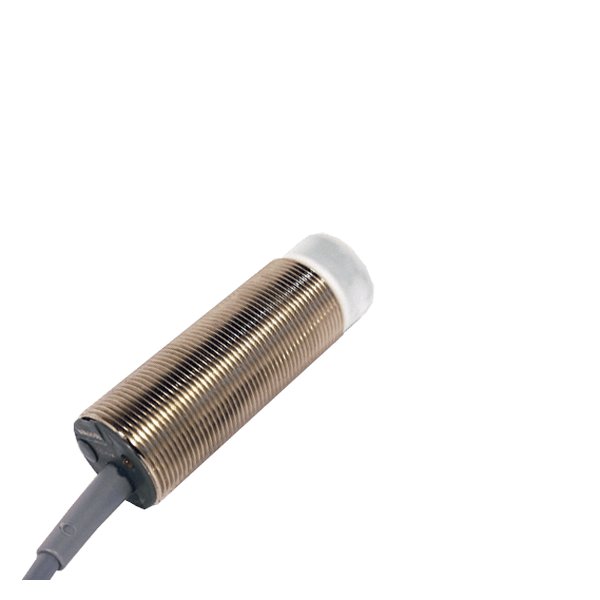

Rechner KAS-95-A24-1CO-M30-PTFE/MS-Z02-1-HP-3D, ATEX — Capacitive Sensors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-95-A24-1CO-M30-PTFE/MS-Z02-1-HP-3D, ATEX |
| Article No. (MPN) | KA1010 |
| Product Category | Sensors |
| No-load current (Io) | 2.1 mA |
| Electrical version | 5-wire AC / DC |
| Housing | M 30 x 1 |
| Housing material | Brass |
| Degree of protection | IP67 |
| Ambient temperature | -20…+70 °C |
| Connection | cable 2 m, PVC, 6 x 0.34 mm² |
| Mounting | Non-flush |
| Accessories (supplied with the sensor) | 2 nuts M 30 x 1,5 |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. All parameters are taken from the official manufacturer documentation.
