Description

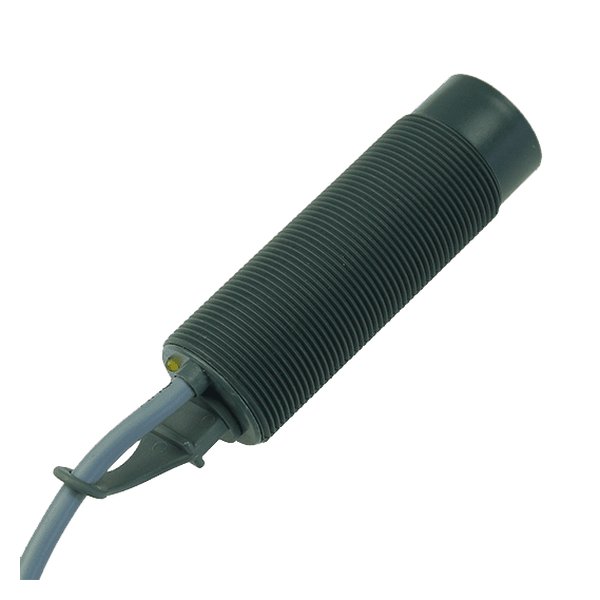

Rechner KAS-90-A24/90-P-M30-PBT-TD-Z02-1 — Capacitive Sensors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-90-A24/90-P-M30-PBT-TD-Z02-1 |
| Article No. (MPN) | KA1293 |
| Product Category | Sensors |
| Operating distance Sn | 15 mm |
| Operating current (Ie) | 5…330 mA |
| Electrical version | 2-wire AC / DC |
| Housing | M 30 x 1 |
| Housing material | PBT |
| Degree of protection | IP 67 |
| Ambient temperature | -25…+70 °C |
| Connection | cable 2 m, PVC, 2 x 0.75 mm² |
| Mounting | Non-flush |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. All parameters are taken from the official manufacturer documentation.
