Description

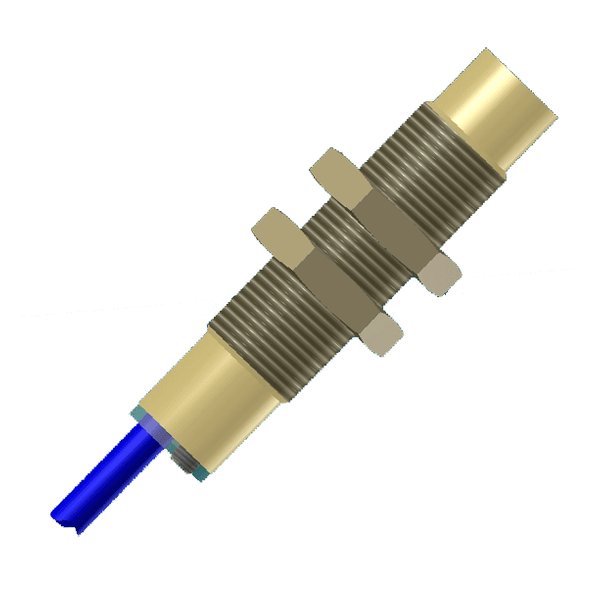

Rechner KAS-40-A22-N-M12-PEEK-Z02-1-1G-1D, ATEX — Capacitive Sensors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Rechner |
|---|---|
| Model / Type | KAS-40-A22-N-M12-PEEK-Z02-1-1G-1D, ATEX |
| Article No. (MPN) | KA1442 |
| Product Category | Sensors |
| Operating distance Sn | 4 mm |
| Output function | NAMUR EN 60947-5-6 |
| Electrical version | 2-wire DC |
| Housing | M 12 x 1 |
| Housing material | PEEK |
| Degree of protection | IP 67 |
| Ambient temperature | -20…+70 °C |
| Connection | cable 2 m, PUR, 2 x 0.14 mm² |
| Mounting | Non-flush |
| Material | PEEK |
| Condition | New & original |
| Availability | On request |
Download official Rechner datasheet (PDF)
Independent distributor — not an authorised Rechner dealer. All parameters are taken from the official manufacturer documentation.
