Description

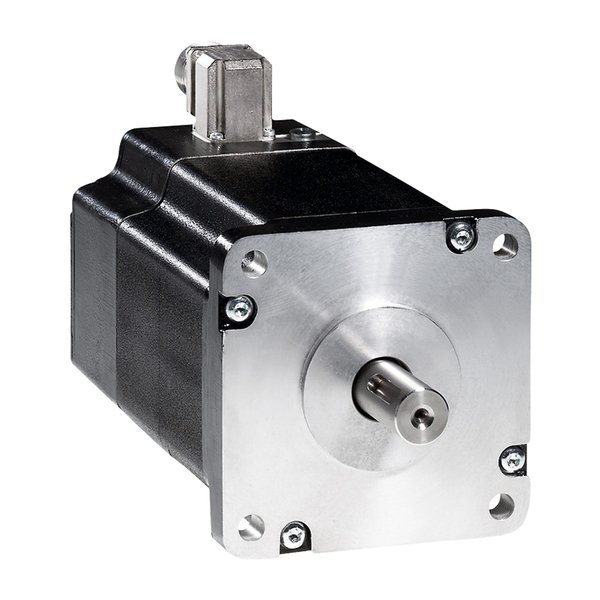

Schneider Electric BRS3ACW850ABB — Stepper Motor. Manufacturer designation: 3-phase stepper motor – 13.5 Nm – shaft Ø19mm – L=180mm – w/o brake – term box. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | BRS3ACW850ABB |
| Product Category | Drives & Controls |
| Range compatibility | Lexium SD3 |
| Product or component type | Motion control motor |
| Maximum mechanical speed | 3000 rpm |
| Motor type | 3-phase stepper motor |
| Number of motor poles | 6 |
| Supply voltage limits | 230 V AC; 325 V DC |
| Mounting support | Flange |
| Motor flange size | 110 mm |
| Length | 180 mm |
| Centring collar diameter | 56 mm |
| Centring collar depth | 3 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 9 mm |
| Circle diameter of the mounting holes | 125.86 mm |
| Electrical connection | Terminal box |
| Holding brake | Without |
| Shaft end | Parallel key |
| Second shaft | With second shaft end |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| Nominal torque | 12 N.m |
| EAN / GTIN | 3389119224161 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
