Description

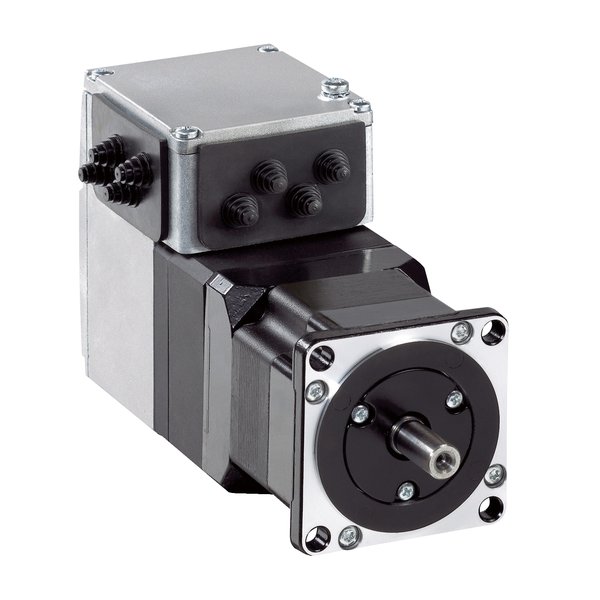

Schneider Electric ILA1F571PC2A0 — Motion Integrated Drive. Manufacturer designation: Integrated drive ILA with servo motor – 24..36 V – CANopen – indus connector. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | ILA1F571PC2A0 |
| Product Category | Drives & Controls |
| Range of product | Lexium integrated drive |
| Product or component type | Motion integrated drive |
| Motor type | AC synchronous servo motor |
| Number of motor poles | 6 |
| Network number of phases | Single phase |
| [Us] rated supply voltage | 24 V; 36 V |
| Network type | DC |
| Communication interface | CANopen DS301, integrated |
| Length | 189.3 mm |
| Winding type | Medium speed of rotation and medium torque |
| Electrical connection | Industrial connector |
| Holding brake | Without |
| Gear box type | Without |
| Nominal speed | 3200 rpm at 24 V; 5500 rpm at 36 V |
| Nominal torque | 0.26 N.m |
| Transmission rate | 50, 100, 125, 250, 500, 800 and 1000 kbauds |
| Mounting support | Flange |
| Motor flange size | 57 mm |
| Number of motor stacks | 1 |
| Centring collar diameter | 50 mm |
| Centring collar depth | 1.6 mm |
| EAN / GTIN | 3389119225434 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
