Description

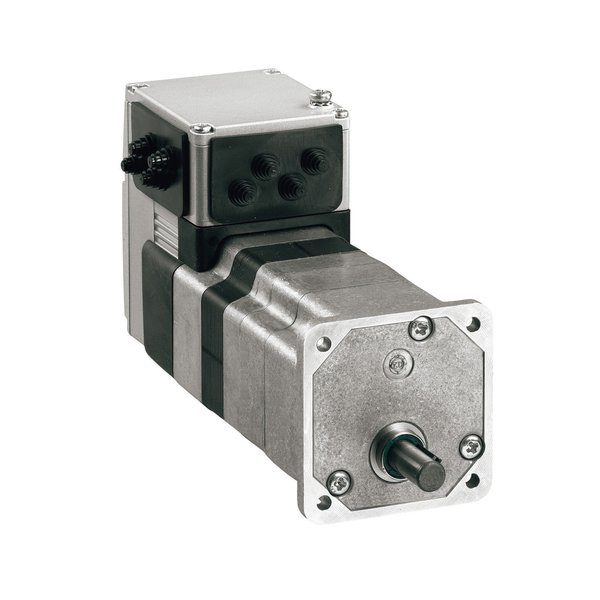

Schneider Electric ILE2E661PB1A2 — Motion Integrated Drive. Manufacturer designation: Brushless dc motor 24..48 V – EtherCAT interface – L = 174 mm – 38:1. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | ILE2E661PB1A2 |
| Product Category | Drives & Controls |
| Range of product | Lexium integrated drive |
| Product or component type | Motion integrated drive |
| Motor type | Brushless DC motor |
| Number of motor poles | 6 |
| Network number of phases | Single phase |
| [Us] rated supply voltage | 48 V; 24 V |
| Network type | DC |
| Communication interface | EtherCAT, integrated |
| Length | 174 mm |
| Winding type | Medium speed of rotation and medium torque |
| Electrical connection | Printed circuit board connector |
| Holding brake | Without |
| Gear box type | Straight teeth gear, 3 stages |
| Reduction ratio | 38:1 (75:2) |
| Nominal speed | 107 rpm at 24 V; 133 rpm at 48 V |
| Nominal torque | 7.3 N.m at 24 V; 7.3 N.m at 48 V |
| Transmission rate | 100 Mbits |
| Mounting support | Flange |
| Motor flange size | 66 mm |
| Number of motor stacks | 1 |
| Centring collar diameter | 16 mm |
| EAN / GTIN | 3606485188812 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
