Description

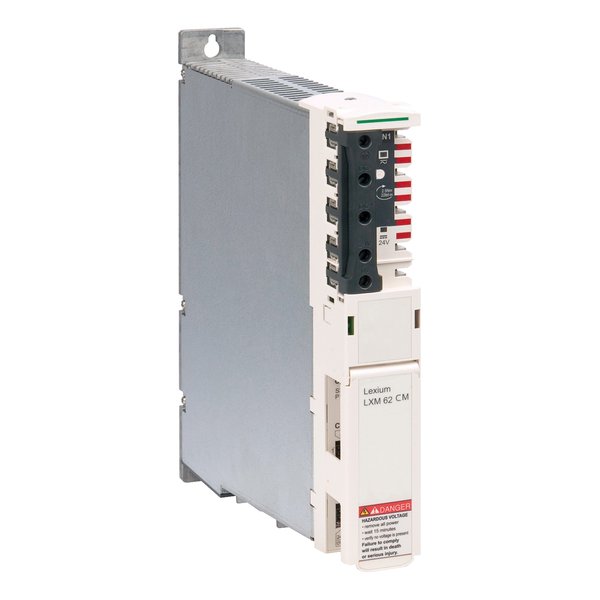

Schneider Electric ILM62CMD20A000 — Connector Module. Manufacturer designation: Connection module to LXM62PD84A11000. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | ILM62CMD20A000 |
| Product Category | Drives & Controls |
| Range of product | PacDrive 3 |
| Product or component type | Connector module |
| Accessory / separate part category | Connection accessories |
| [Us] rated supply voltage | 250…700 V |
| [Uc] control circuit voltage | 24 V DC (tolerance: – 20…25 %) |
| Input current | 20 A |
| Control threshold overvoltage | 860 V |
| Output current | 20 A |
| Peak output current | 40 A |
| Physical interface | SERCOS III |
| Type of cooling | Natural convection |
| Overvoltage category | Class 3 conforming to IEC 61800-5-1 |
| Width | 44.5 mm |
| Height | 310 mm |
| Depth | 270 mm |
| Net weight | 3 kg |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 75.000 cm |
| EAN / GTIN | 3606485305523 |
| Condition | New & original |
| Availability | On request |
