Description

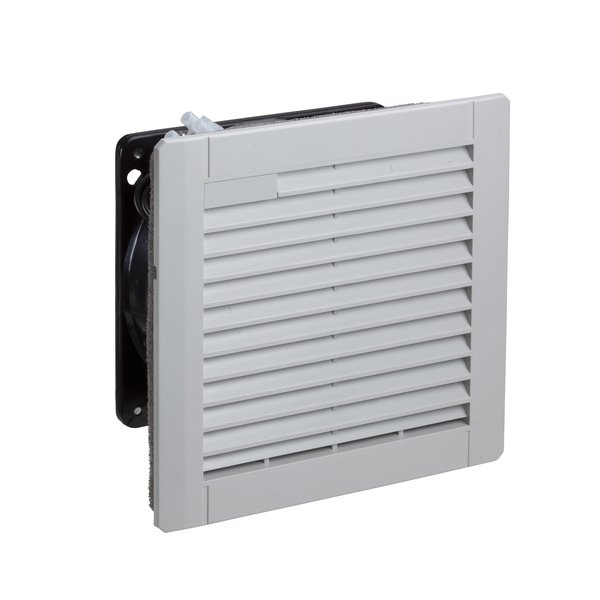

Schneider Electric NSY17992 — EMC Fan. Manufacturer designation: Ventilator CEM 480 m3/h. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSY17992 |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | EMC fan |
| Type of filter | Standard |
| Flow rate | Free flow rate: 480 m3/h at 50 Hz |
| Input voltage | 230 V 50/60 Hz |
| Height | External: 320 mm |
| Width | External: 320 mm |
| Depth | External : 150 mm |
| Cut-out dimensions | 292 x 292 mm |
| Material | Outlet grille: ABS (acrylonitrile butadiene-styrene); Frame of axial motor: steel; Gasket: berylium |
| Colour | Outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Device composition | 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 EMC outlet grille: front; 1 gasket: between fan and enclosure |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 53.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 49.200 kg |
| Country of origin | DE |
| EAN / GTIN | 3606480169403 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
