Description

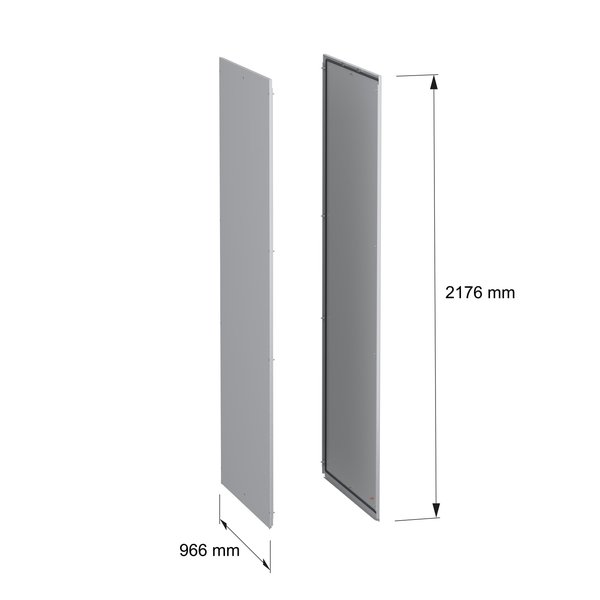

Schneider Electric NSY2SPN2210 — Side Panel. Manufacturer designation: Side panels, PanelSeT SFN, for electrical enclosure H2200 D1000mm, external fixing, set of 2. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSY2SPN2210 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or Component Type | Side panel |
| Application | Multi-purpose |
| For enclosure nominal dimensions | – H: 86.6 in (2200 mm) D: 39.4 in (1000 mm) |
| Mounting Location | Sides of enclosure |
| Range compatibility | PanelSeT SFN |
| Device composition | Fixing elements; 2 side panel |
| Material | Steel |
| Net Weight | 228.8 lb(US) (103.8 kg) |
| Color | Gray RAL 7035) |
| Surface Finish | Epoxy-polyester powder |
| Fixing mode | By screws captive – from the outside of enclosure |
| Height | Nominal: 86.6 in (2200 mm) |
| Width | Nominal: 39.4 in (1000 mm) |
| Gtin | 3606486108529 |
| Returnability | No |
| Country of origin | FR |
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 132.277 lb(US) (60.000 kg) |
| Unit Type of Package 2 | PAL |
| EAN / GTIN | 3606486108529 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
