Description

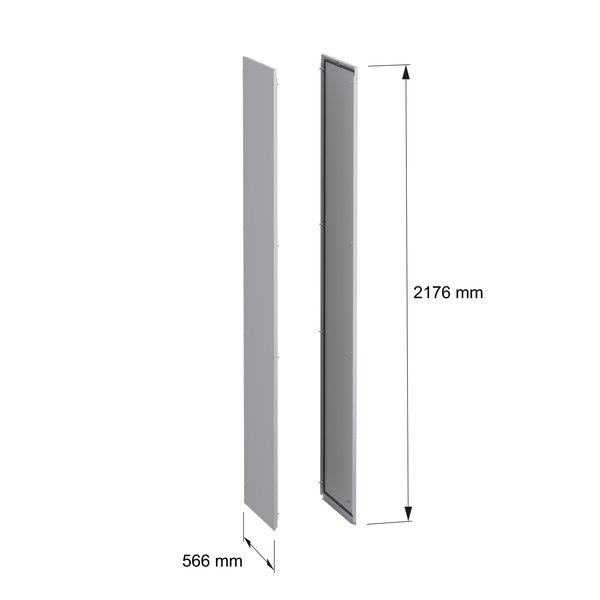

Schneider Electric NSY2SPN226 — Side Panel. Manufacturer designation: “Side panels, PanelSeT SFN, for electrical enclosure H2200 D600mm, external fixing, set of 2”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSY2SPN226 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side panel |
| Application | Multi-purpose |
| For enclosure nominal dimensions | – H: 2200 mm D: 600 mm |
| Mounting location | Sides of enclosure |
| Range compatibility | PanelSeT SFN |
| Device composition | Fixing elements; 2 side panel |
| Material | Steel |
| Net weight | 98.8 kg |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws – screw type captive – from the outside of enclosure location |
| Height | Nominal: 2200 mm |
| Width | Nominal: 600 mm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 83.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 222.300 cm |
| Package 2 Weight | 746.000 kg |
| EAN / GTIN | 3606486104491 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
