Description

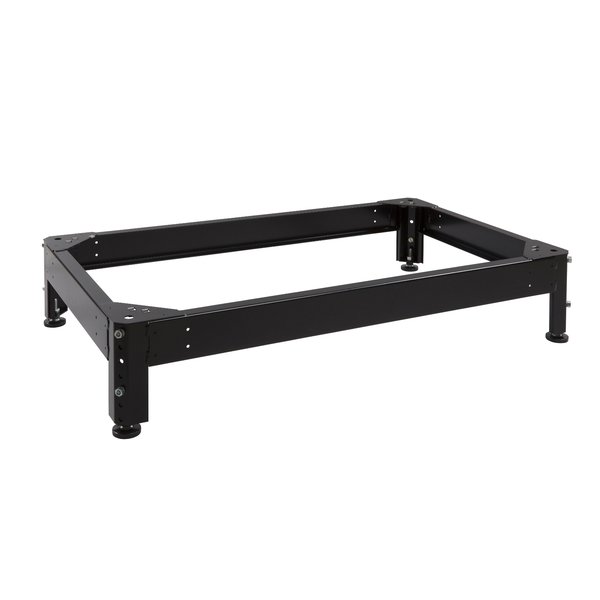

Schneider Electric NSYAEBP2F68 — Plinth Raiser. Manufacturer designation: Actassi – plinth raiser – depth 800 mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYAEBP2F68 |
| Product Category | Enclosures & Junction Boxes |
| Range of product | Actassi |
| Product or component type | Plinth raiser |
| Accessory / separate part category | Mounting accessory |
| Colour | Grey (RAL 9011) |
| Material | Textured epoxy-polyester powder sheet steel |
| Mounting location | Fixing to the floor |
| Adjustment | Feet adjustable from 0 to 60 mm with holes; Adjustable in height from 200 mm to 350 mm in steps of 25 mm |
| Permanent permissible load | 1000 kg static load |
| Range compatibility | Actassi VDS; Actassi SF; Actassi VDA |
| Product destination | Rack; Enclosure |
| Number of rack unit | 24U; 42U |
| Height | 200…350 mm |
| Width | 600 mm |
| Depth | 800 mm |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 170.500 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 121.000 kg |
| Warranty (in months) | 18 |
| EAN / GTIN | 3606480176159 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
