Description

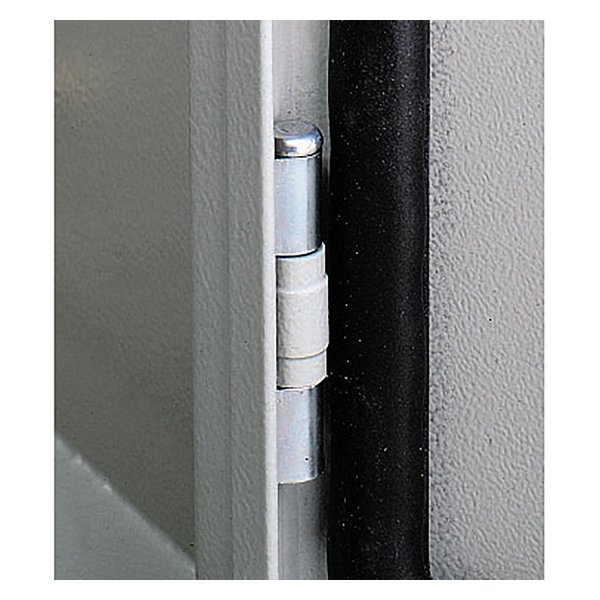

Schneider Electric NSYAEDH120S3D — Hinge. Manufacturer designation: “Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYAEDH120S3D |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Product or component type | Hinge |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – |
| Mounting location | Enclosure |
| Range compatibility | PanelSeT S3D S3D enclosure |
| Device composition | Fixing elements; 1 x hinge body; 1 x pin |
| Quantity per set | Set of 1 |
| Material | Hinge body: treated sheet steel; Pin: aluminium |
| Fixing mode | By screws – on enclosure body location |
| Operating angle | 120 ° |
| Maximum load | 50 kg/m² |
| Net weight | 0.031 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.600 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 2000 |
| EAN / GTIN | 3606480169021 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
