Description

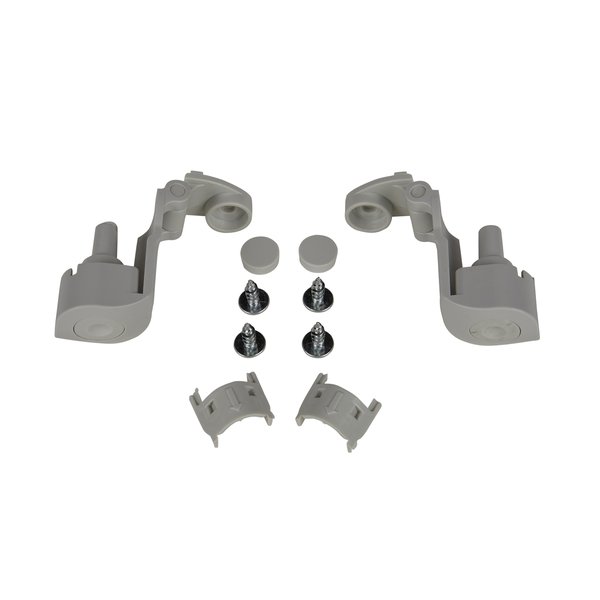

Schneider Electric NSYAEDH40TB — Hinge. Manufacturer designation: Hinges, for cover-depth 40 mm. In thermoplastic PC with screws.. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYAEDH40TB |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Product or component type | Hinge |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – |
| Range compatibility | PanelSeT TBS TBS, TBP boxes, cover H:40; PanelSeT TBS TBS, TBP boxes, cover H:20 |
| Device composition | Fixing elements; 2 x hinge |
| Quantity per set | Set of 1 |
| Fixing mode | By screws – on cover location; By fixing element – rear location |
| Operating angle | 200 ° |
| Maximum load | 10 kg/m2 |
| Net weight | 0.035 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.940 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 4000 |
| Package 3 Height | 100.000 cm |
| Package 3 Width | 100.000 cm |
| EAN / GTIN | 3606480166419 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
