Description

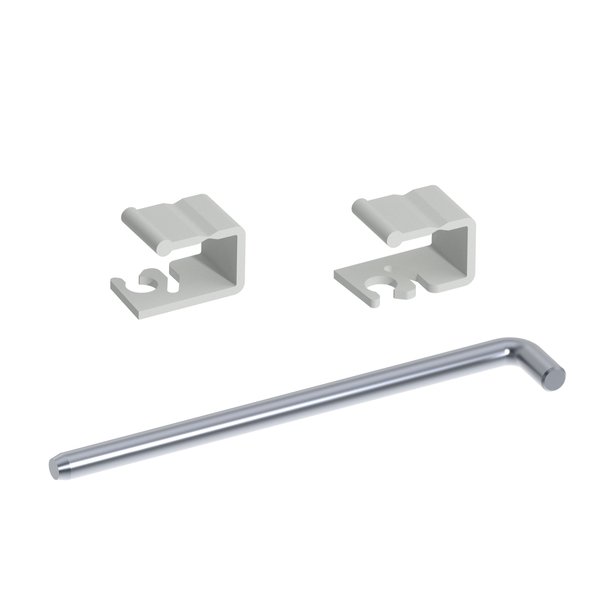

Schneider Electric NSYAEDHPLM108 — Hinge. Manufacturer designation: Door hinge for NSYPLM108. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYAEDHPLM108 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Product or component type | Hinge |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – |
| Mounting location | Door and enclosure |
| Range compatibility | PanelSeT PLM enclosure: H = 1056 mm |
| Device composition | 3 x hinge pin; Pin retainer |
| Quantity per set | Set of 1 |
| Material | Steel |
| Operating angle | 180 ° |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 13.000 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 3.000 cm |
| Package 2 Weight | 310.000 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 19.500 cm |
| Package 3 Width | 28.000 cm |
| Package 3 Length | 28.000 cm |
| EAN / GTIN | 3606480482038 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
