Description

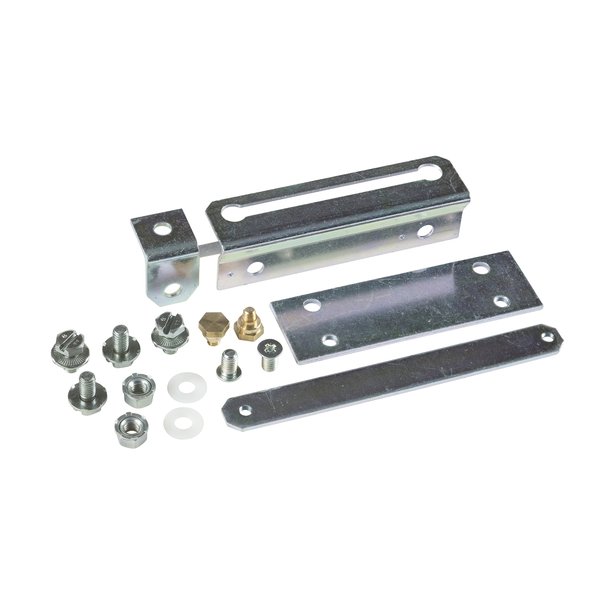

Schneider Electric NSYAEDRSCST — Door Retainer. Manufacturer designation: “Door stay for PanelSet WM enclosure encl. Mounted on encl. with a height >400”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYAEDRSCST |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Product or component type | Door retainer |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – |
| Mounting location | Door and enclosure |
| Range compatibility | PanelSeT CRNG version; PanelSeT enclosures with a height from 400 mm and widths from 300mm; PanelSeT S3D S3D, CRN enclosures; PanelSeT S3X S3X enclosures |
| Device composition | Fixing elements; 1 x retainer |
| Material | Steel |
| Fixing mode | By fixing element – on enclosure body location |
| Operating angle | 110 ° |
| Opening mechanism | Mechanical |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 40.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 20.000 cm |
| Package 2 Weight | 10.516 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| EAN / GTIN | 3606480168789 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
