Description

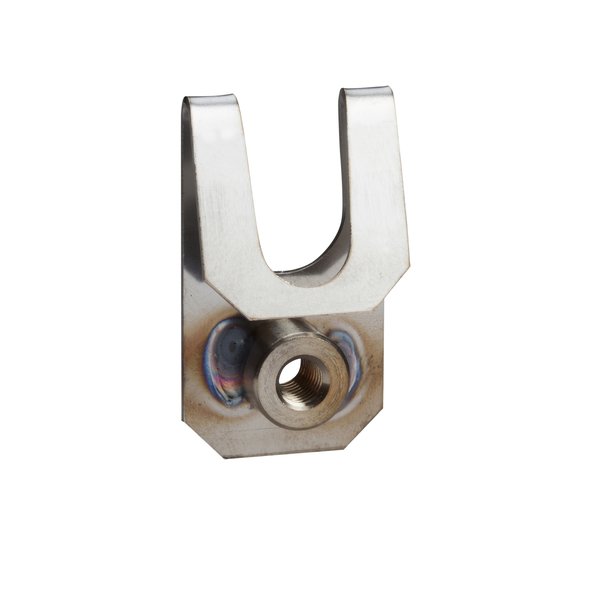

Schneider Electric NSYAEFAHLBSC — Heavy Load Wall Fixing Support. Manufacturer designation: Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYAEFAHLBSC |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Heavy load wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – |
| Mounting location | To be mounted before installing the mounting plate in top position |
| Mounting support | On standard lug |
| Range compatibility | PanelSeT S3D; PanelSeT CRN PanelSeT CRNG |
| Device composition | 2 reinforcement piece |
| Quantity per set | Set of 1 |
| Material | Steel |
| Fixing mode | Screwed – screw type M8 – on standard lug location |
| Permanent permissible load | 400 kg vertical position |
| Height | 45 mm |
| Net weight | 0.1 kg |
| Country of origin | ES |
| Warranty (in months) | 18 |
| EAN / GTIN | 3606480168772 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
