Description

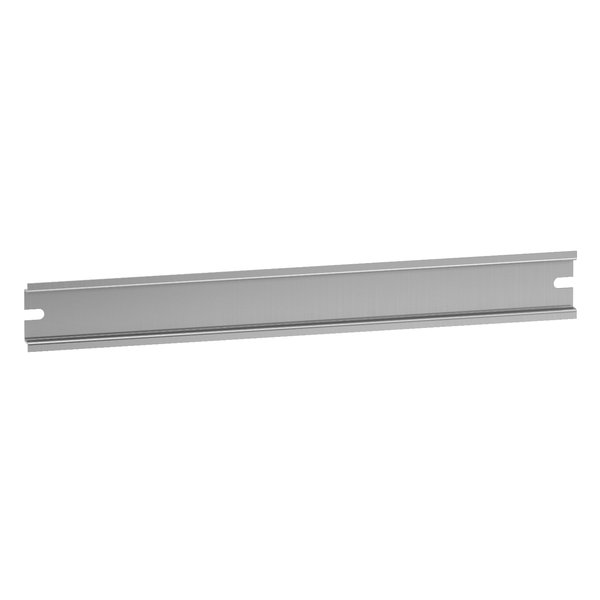

Schneider Electric NSYAMRD20357SB — Rail. Manufacturer designation: “Symmetrical mounting rail H35D7.5mm – L 200mm for PanelSeT SBM”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYAMRD20357SB |
| Product Category | Enclosures & Junction Boxes |
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Rail |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | – |
| Mounting support | Self-tapping screw |
| Range compatibility | PanelSeT SBM |
| Device composition | 1 rail |
| Quantity per set | Set of 10 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By screw – screw type Ø5 mm self-tapping screws – rear of enclosure location |
| Height | 35 mm |
| Width | Nominal: 185 mm; Fixing centers: 171.5 mm |
| Depth | 7.5 mm |
| Thickness | 1 mm |
| Net weight | 0.062 kg |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.000 cm |
| EAN / GTIN | 3606480520709 |
| Condition | New & original |
| Availability | On request |
