Description

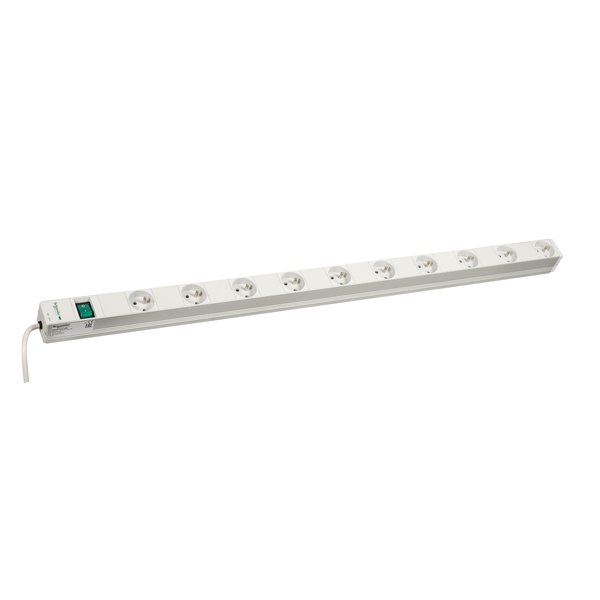

Schneider Electric NSYAPUF10S — Power Distribution Rail. Manufacturer designation: Actassi – vertical power distribution rail – 10 sockets+switch UTE. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYAPUF10S |
| Product Category | Enclosures & Junction Boxes |
| Range | Actassi |
| Product or component type | Power distribution rail |
| Device application | Multi-purpose |
| Outlet standard description | Pin earth |
| Accessory / separate part category | Current distribution accessory |
| Outlet poles configuration | 2P + E with shutters |
| Quantity per set | Set of 1 |
| Colour | Aluminium |
| Device composition | 1 power rail; fixing elements |
| Ground lug position | 35° ground lug |
| Socket number | 10 |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 230 V AC |
| Control type | Green LED switch |
| Mounting support | Upright |
| Fixing mode | By brackets |
| Material | Polyamide 6 with 30 % fibre glass |
| Surface finish | Anodized |
| Electrical connection | 3 m power cord 3 x 1.5 mm² H05VV-F3G1.5 |
| Width | 968 mm |
| Depth | 44 mm |
| EAN / GTIN | 3606480171925 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
