Description

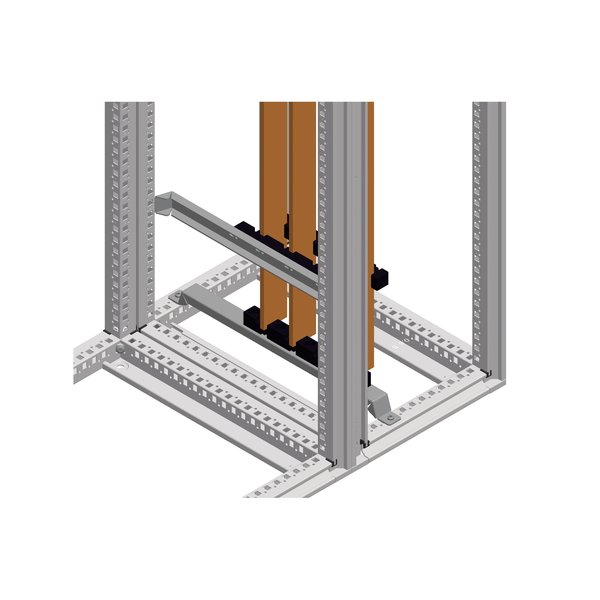

Schneider Electric NSYBVS500 — Busbar Support. Manufacturer designation: Vertical bar support up to 3200 A 500×500 mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYBVS500 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Busbar accessory |
| Product or component type | Busbar support |
| Anwendung | Multi-purpose; Prisma application |
| Enclosure nominal dimensions | – |
| Mounting location | On structure of enclosure |
| Busbar position | Vertical |
| Range compatibility | Linergy Linergy LGYE; Linergy Linergy BS; Prisma Prisma PH |
| Cubicle-device connection | Linergy LGYE lateral busbar – fixed; Linergy BS lateral busbar – fixed |
| Device composition | Fixing elements; 1 metal support; 2 insulating bar support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic; Metal support: steel |
| Fixing mode | By fixing element |
| Width | Fixing centers: 450 mm; Nominal: 500 mm |
| Depth | 39 mm |
| [In] rated current | 3200 A |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 54.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| EAN / GTIN | 3606480062995 |
| Condition | New & original |
| Availability | On request |
