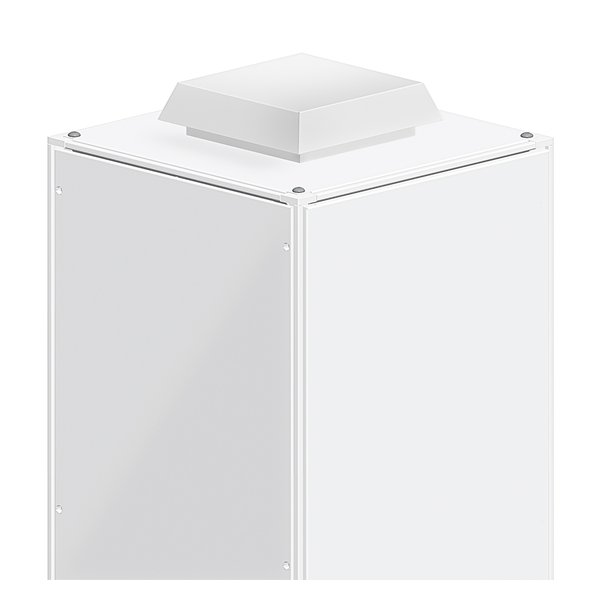

Schneider Electric NSYCAC228RMB — Top Hood. Manufacturer designation: Roof outlet grille – cut-out 228x228mm – ext. dim 90x340x340mm – IP54, white (RAL 9003). New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCAC228RMB |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | Prisma Prisma P |
| Product or component type | Top hood |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| Mounting location | On top of enclosure |
| Fixing mode | By fixing element |
| Device composition | 1 hood; 1 fixing elements |
| Material | Steel |
| Colour | Hood: signal white (RAL 9003) |
| Surface finish | Epoxy-polyester powder |
| Cut-out dimensions | 228 x 228 mm |
| Net weight | 4.6 kg |
| Height | External: 340 mm |
| Width | External: 340 mm |
| Depth | External : 90 mm |
| IP degree of protection | IP54 |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 101.000 cm |
| EAN / GTIN | 3606485432014 |
| Condition | New & original |
| Availability | On request |
