Description

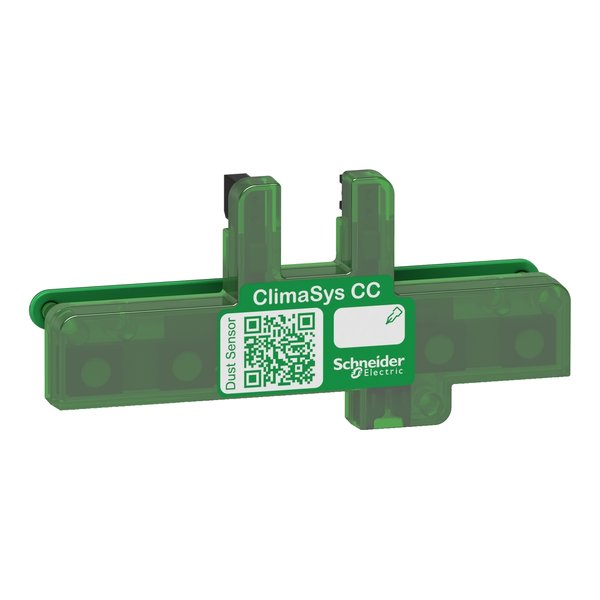

Schneider Electric NSYCCAFSDUST — Dust Filter Sensor; Temperature Sensor. Manufacturer designation: ClimaSys CV – CSVS DustSensor for Smartfilters. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCCAFSDUST |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Dust filter sensor; Temperature sensor |
| Product compatibility | ClimaSys DG 230/400V AC fan; ClimaSys DG grille; ClimaSys CV 230/400V AC standard fan and grille adapted to integrate dust sensor; ClimaSys CA grille |
| Sensor type | Infrared sensor |
| Type of measurement | Temperature measurement range: – 40…70 °C: measured across the filter |
| Mounting location | In smart filter |
| Mounting mode | By clips |
| Communication interface | Modbus between sensor and controller |
| Connections – terminals | Mini connector Modbus (4 wires) |
| Material | Injected thermoplastic (PC) |
| Quantity per set | Set of 1 |
| Height | 34.15 mm |
| Width | 69.9 mm |
| Depth | 15.5 mm |
| Colour | Transparent green (Pantone 355C) |
| Product certifications | CE; EAC; EMC directive 89/336 EEC |
| Ambient air temperature for operation | -40…70 °C operation |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 480 |
| Package 2 Height | 50.000 cm |
| EAN / GTIN | 3606481369475 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
