Description

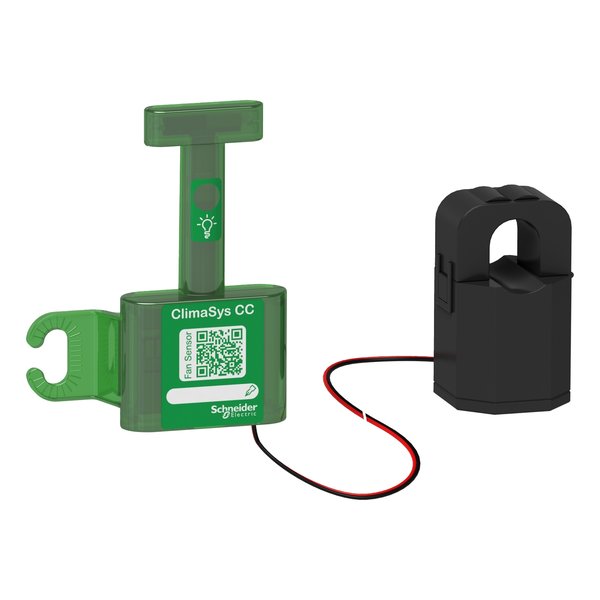

Schneider Electric NSYCCARPM — RPM And Temperature Sensor. Manufacturer designation: ClimaSys CV – CSVS FanSensor. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCCARPM |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | RPM and temperature sensor |
| Product compatibility | ClimaSys DG 230/400 V AC fan 115 V; ClimaSys CV 230/400 V AC standard fan 115 V; ClimaSys CV grille adapted to integrate dust sensor |
| Sensor type | RPM reader by infrared light sensor; Small toroidal for current consumption |
| Mounting location | Behind fan |
| Mounting mode | By clips |
| Communication interface | Modbus between sensor and controller |
| Connections – terminals | Mini connector Modbus (4 wires) |
| Local signalling | Fault indication: 1 red LED by blinking; Bad position: 1 red LED by blinking; Sensor position: 1 green LED by flashing |
| Material | Injected thermoplastic (PC) |
| Quantity per set | Set of 1 |
| Height | 61.9 mm |
| Width | 48.6 mm |
| Depth | 15.2 mm |
| Colour | Transparent green (Pantone 355C) |
| Product certifications | CE; EAC; EMC directive 89/336 EEC |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 55 |
| Package 2 Height | 24.500 cm |
| Package 2 Width | 34.000 cm |
| EAN / GTIN | 3606481369468 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
