Description

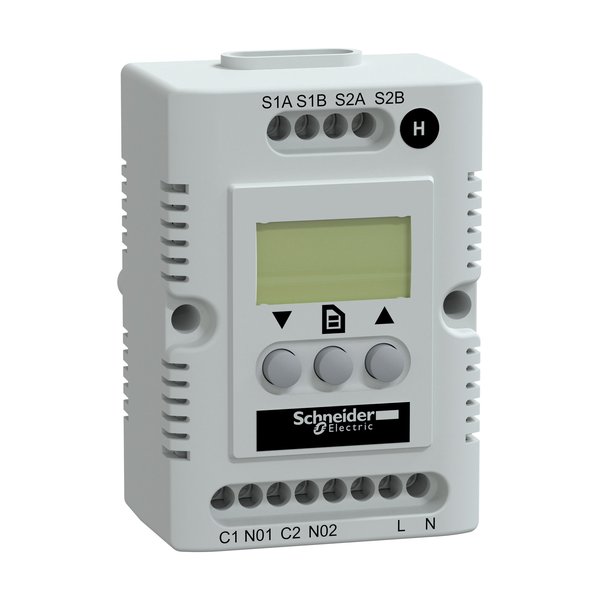

Schneider Electric NSYCCOHY230VID — Electronic Hygrostat. Manufacturer designation: Climasys CC – electronic hygrostat – 200…240 V – Hr 20…80% – OLED screen. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCCOHY230VID |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Electronic hygrostat |
| Humidity setting range | 20…80 % |
| Display type | OLED screen |
| Information displayed | Relative humidity |
| Input voltage | 200…240 V AC |
| Maximum switching capacity | 4 A 230 V AC |
| Electrical connection | 6 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | By screws; Clipped |
| Height | External: 85 mm |
| Width | External: 56 mm |
| Depth | External : 44 mm |
| Mounting location | On mounting plate; Cross rails; 35 mm DIN rail; Spacial upright |
| Ambient air temperature for operation | -40…80 °C |
| Hysteresis | 3 % |
| Number of outputs | 2 heating function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UR |
| EAN / GTIN | 3606480152634 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
