Description

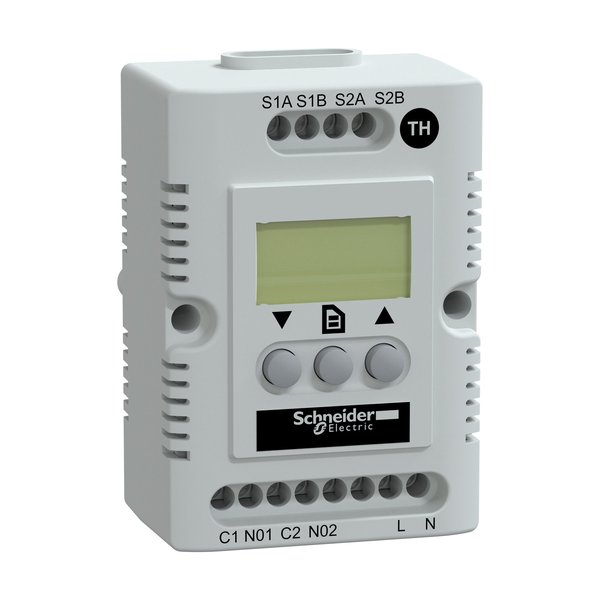

Schneider Electric NSYCCOTH230VID — Electronical Thermostat. Manufacturer designation: Climasys CC – Electronical thermostat 200..240V – range of temperature -40…80°C. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCCOTH230VID |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Electronical thermostat |
| Temperature setting range | -40…80 °C |
| Display type | OLED screen |
| Information displayed | Temperature in °F; Temperature in °C |
| Input voltage | 200…240 V AC |
| Sensor type | Optional NTC external sensor |
| Maximum switching capacity | 4 A 230 V AC |
| Electrical connection | 10 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | Clipped; By screws |
| Height | External: 85 mm |
| Width | External: 56 mm |
| Depth | External : 44 mm |
| Mounting location | Cross rails; On mounting plate; Spacial upright; 35 mm DIN rail |
| Ambient air temperature for operation | -40…80 °C |
| Hysteresis | 2 K programmed value |
| Number of outputs | 2 ventilation/heating function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| EAN / GTIN | 3606480152627 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
