Description

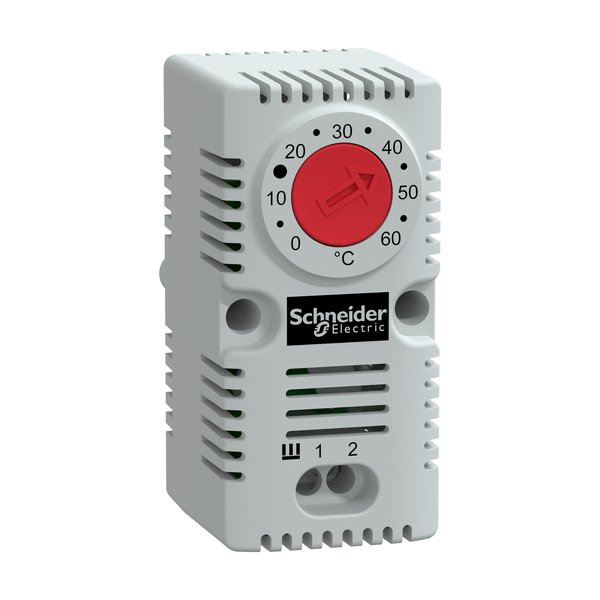

Schneider Electric NSYCCOTHC — Simple Thermostat. Manufacturer designation: ClimaSys CC – simple thermostat 250V – range of temperature 0…60°C – NC – °C. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCCOTHC |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Simple thermostat |
| Temperature setting range | 0…60 °C |
| Information displayed | Temperature in °C |
| Input voltage | 240 V |
| Sensor type | Bimetal |
| Contacts type and composition | NC |
| Contact resistance | 10 mOhm |
| Service life in cycles | 100000 cycles |
| Maximum switching capacity | 2 A 120…250 V AC inductive pf: 0.6; 10 A 250 V AC resistive; 15 A 120 V AC resistive; 30 W DC |
| Electrical connection | 4 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | Clipped |
| Height | External: 68 mm |
| Width | External: 33 mm |
| Depth | External : 44 mm |
| Net weight | 40 g |
| Mounting location | Spacial upright; 35 mm DIN rail; Cross rails; On mounting plate |
| Ambient air temperature for operation | -20…80 °C |
| IP degree of protection | IP20 |
| Hysteresis | 7 K +/- 0.4K |
| EAN / GTIN | 3606480152498 |
| Condition | New & original |
| Availability | On request |
