Description

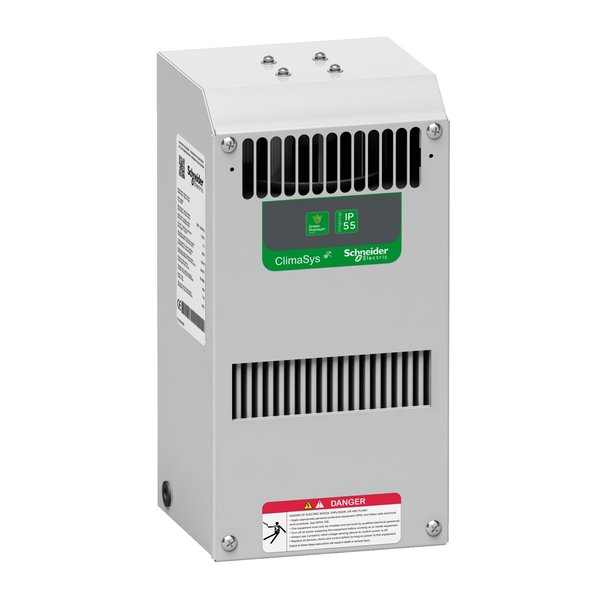

Schneider Electric NSYCEA22E — Air-air Exchanger. Manufacturer designation: ClimaSys Exchanger air-air 22W/K side mounted without T. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCEA22E |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CE |
| Product or component type | Air-air exchanger |
| Mounting type | Sides of enclosure |
| Cooling power | 22 W power is obtained by multiplying specific power by DeltaT (Tex.t-Tint.) |
| Flow rate | External circuit: 280 m3/h; Internal circuit: 280 m3/h |
| Control type | Without |
| Ambient air temperature for operation | 5…55 °C outside the enclosure: |
| Nature of the fluid | Air |
| Input voltage | 230 V 50/60 Hz |
| [In] rated current | 0.5 A |
| Power consumption in W | 72 W |
| Height | External: 413 mm |
| Width | External: 189 mm |
| Depth | External : 149 mm |
| Net weight | 7 kg |
| Noise level | 59 dB conforming to EN/ISO 3746 |
| Protection type | Thermal protection: T 1 A |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| IP degree of protection | IP55 (internal IP); IP2XC (external IP) |
| EAN / GTIN | 3606480985539 |
| Condition | New & original |
| Availability | On request |
