Description

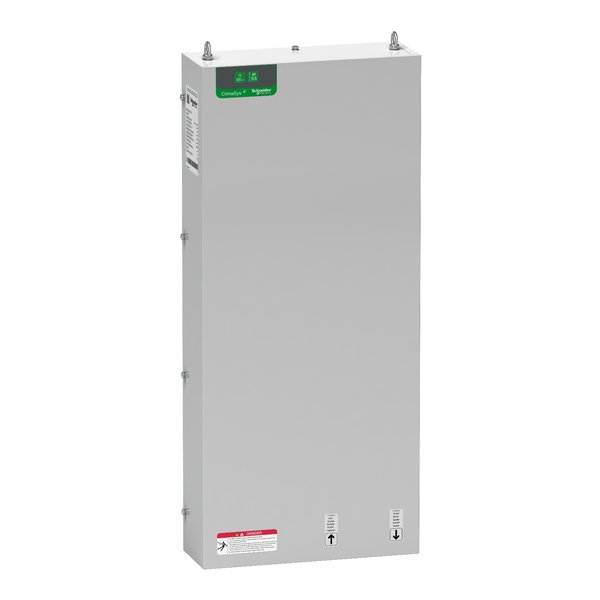

Schneider Electric NSYCEW1K8 — Air-water Exchanger. Manufacturer designation: ClimaSys Exchanger air-water 1750W sides of enclosure. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCEW1K8 |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CE |
| Product or component type | Air-water exchanger |
| Mounting type | Sides of enclosure |
| Cooling power | 1750 W |
| Pressure | 5 bar for water |
| Pressure drop | 0.1 bar |
| Water flow | Internal circuit: 150 l/h |
| Flow rate | External circuit: 570 m3/h |
| Control type | Thermostat |
| Temperature setting range | 20…46 °C |
| Ambient air temperature for operation | 1…70 °C outside the enclosure:; 20…60 °C inside the enclosure: |
| Controlled fluid | Water |
| Fluid connection type | G 1/2 (female) |
| Input voltage | 230 V 50/60 Hz |
| [In] rated current | 0.36 A |
| Power consumption in W | 75 W |
| Height | External: 901 mm |
| Width | External: 398 mm |
| Depth | External : 137 mm |
| Net weight | 18 kg |
| EAN / GTIN | 3606480620713 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
