Description

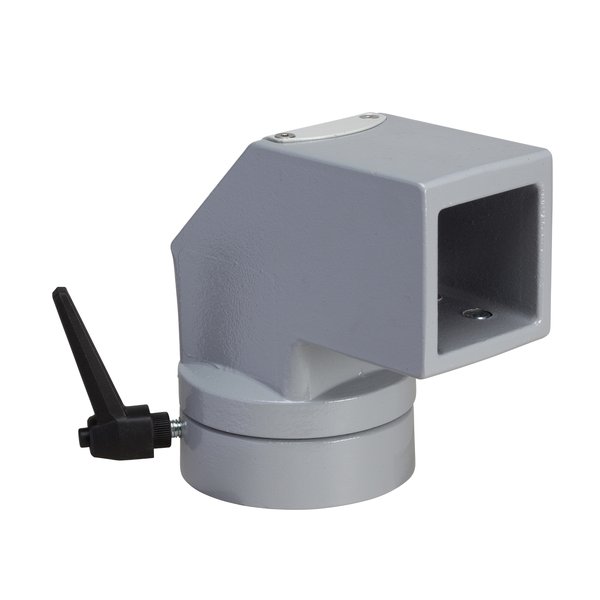

Schneider Electric NSYCMUCC50 — Bent And Rotating Enclosure Fixing. Manufacturer designation: Horizontal rotating fixing, square 50 mm RAL 7040. For S3CM HMI encl.. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCMUCC50 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Cable management accessory |
| Product or component type | Bent and rotating enclosure fixing |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – |
| Mounting location | On enclosure, in horizontal position |
| Mounting support | For 50 mm square tube; Option of passing cables through the inside |
| Range compatibility | PanelSeT S3CM |
| Device composition | Fixing elements; 1 rotating fixing |
| Quantity per set | Set of 1 |
| Material | Aluminium |
| Colour | Grey (RAL 7040) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | Fixing through the support surface by 4 screws – screw type M6 |
| Operating angle | 310 ° |
| Permanent permissible load | 2 kg |
| Height | 147 mm |
| Width | 154 mm |
| Depth | 180 mm |
| Diameter | 96 mm |
| Net weight | 2 kg |
| EAN / GTIN | 3606480213113 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
