Description

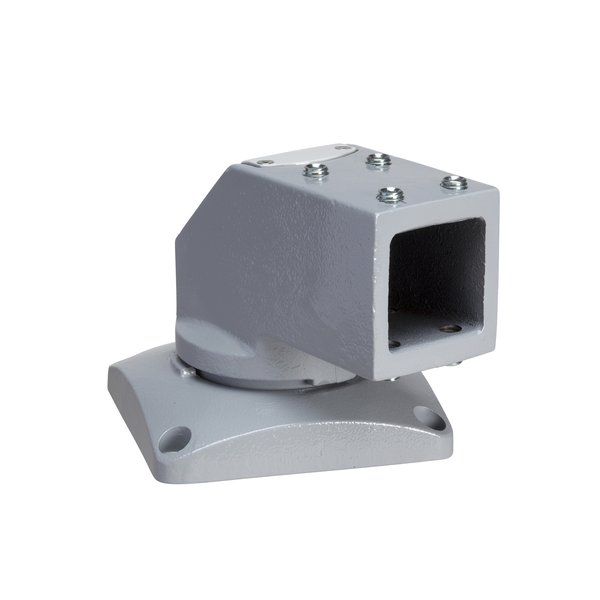

Schneider Electric NSYCMUMC50 — Fixing On Support. Manufacturer designation: Horizontal rotating bracket, square 50 mm RAL 7040. For S3CM HMI encl.. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCMUMC50 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Fixing on support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – |
| Mounting location | Between tube and support |
| Mounting support | Option of passing cables through the inside; For 50 mm square tube |
| Range compatibility | PanelSeT S3CM |
| Device composition | Fixing elements; 1 fixing and rotating bracket |
| Quantity per set | Set of 1 |
| Material | Moulded steel |
| Colour | Grey (RAL 7040) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element – screw type M12 – horizontal tube location; By 4 screws – screw type M9 – on support location |
| Operating angle | 295 ° |
| Permanent permissible load | 5.4 kg |
| Height | 134 mm |
| Width | 140 mm |
| Depth | 164 mm |
| Net weight | 5.56 kg |
| Unit Type of Package 2 | PAM |
| EAN / GTIN | 3606480213007 |
| Condition | New & original |
| Availability | On request |
