Description

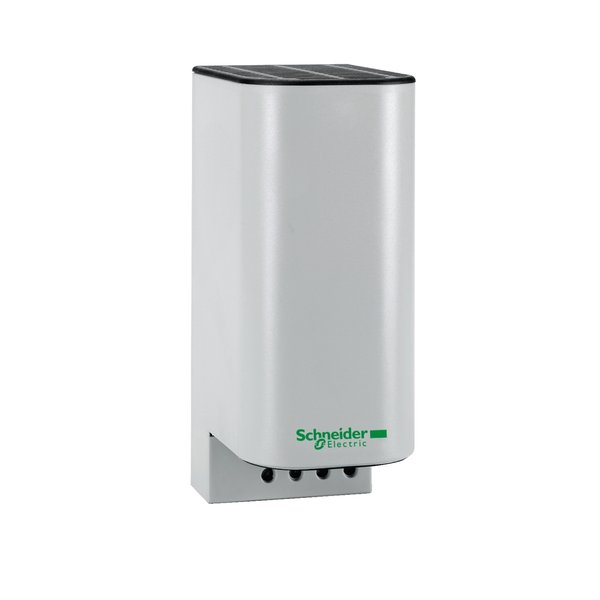

Schneider Electric NSYCR100WU1C — Resistance Heater. Manufacturer designation: ClimaSys PTC heating resistance 100W, 12-24V insulate. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCR100WU1C |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 100 W |
| Input voltage | 12…24 V AC/DC 50/60 Hz |
| Electrical connection | 4 screw terminals 2.5 mm² |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Electrical insulation class | Class II |
| Product certifications | VDE |
| Material | Body: extruded aluminium; Cover: plastic |
| Height | External: 150 mm |
| Width | External: 60 mm |
| Depth | External : 90 mm |
| Condition of use | Electrical protection is needed; Heaters must be installed with a thermal controller; Air sealed enclosure |
| Fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 27.000 cm |
| EAN / GTIN | 3606480152313 |
| Condition | New & original |
| Availability | On request |
