Description

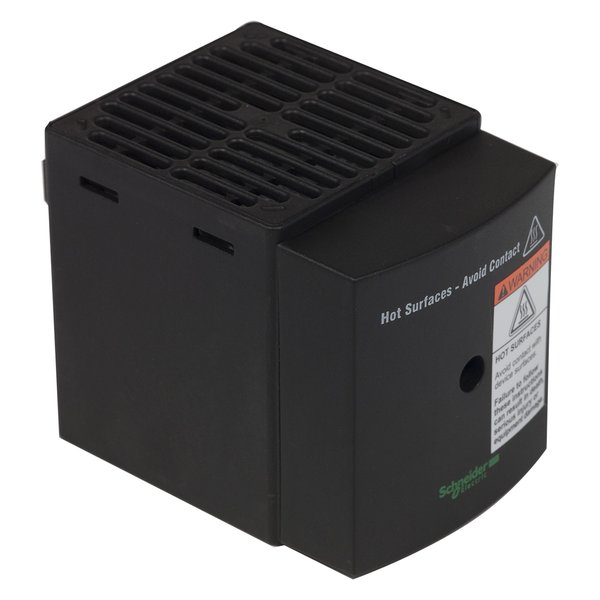

Schneider Electric NSYCR170W230VVC — Resistance Heater With Fan. Manufacturer designation: ClimaSys PTC heating resistance 177W 230V with ventilator insulate. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCR170W230VVC |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater with fan |
| Power range | 177 W |
| Input voltage | 230 V AC 50/60 Hz |
| Electrical connection | 2 screw terminals 2.5 mm² |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Electrical insulation class | Class II |
| Product certifications | VDE; UL; cURus |
| Material | Body: extruded aluminium; Cover: plastic |
| Height | External: 75 mm |
| Width | External: 65 mm |
| Depth | External : 90 mm |
| Condition of use | Electrical protection is needed; Heaters must be installed with a thermal controller; Air sealed enclosure |
| Fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 60.000 cm |
| EAN / GTIN | 3606480152405 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
