Description

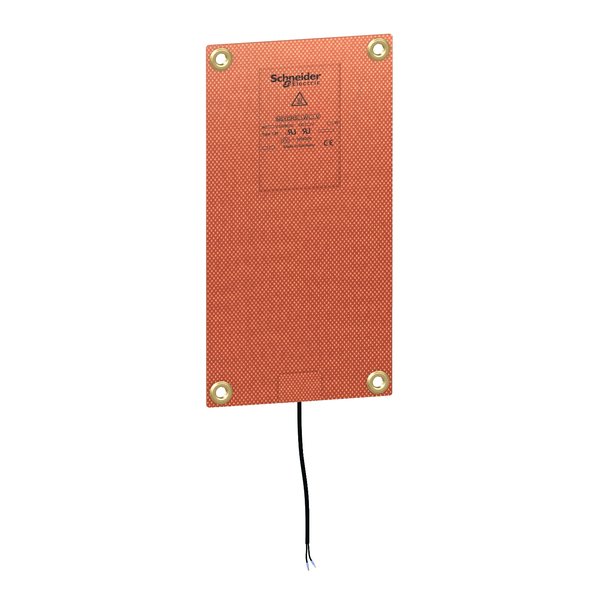

Schneider Electric NSYCRS10W240V — Ultra Thin Resistance Heater. Manufacturer designation: Climasys Ultra thin resistance heater low starting current 12W 240V 130x250mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCRS10W240V |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Ultra thin resistance heater |
| Power range | 12 W |
| Input voltage | 240 V AC 50/60 Hz |
| Electrical connection | Cable length: 2 m |
| Operating position | Vertical; Horizontal |
| Ambient air temperature for operation | -60…70 °C |
| Temperature setting range | -40…70 °C |
| Material | Silicone rubber |
| Height | External: 110 mm |
| Width | External: 140 mm |
| Depth | External : 1.6 mm |
| Device composition | 6 self-adhesive Velcro pads; 6 plastic spacers; 4 Telequick nuts; 4 clip-on nuts; fixing accessories |
| Condition of use | Electrical protection is needed; Heaters must be installed with a thermal controller; Air sealed enclosure |
| Fixing mode | By 4 screws |
| Mounting support | Standard mounting plate; Adhesive Velcro; DIN rail; Telequick mounting plate |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 440 |
| Package 2 Height | 172.000 cm |
| Package 2 Width | 100.000 cm |
| EAN / GTIN | 3606480530128 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
