Description

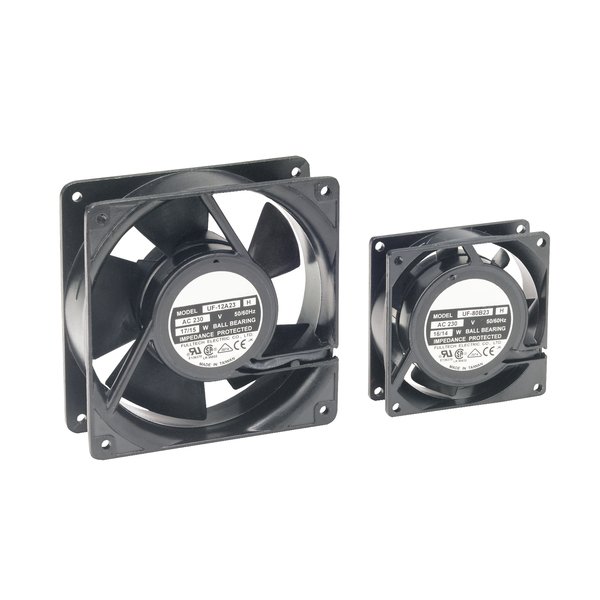

Schneider Electric NSYCVF35M115 — Fan Motor. Manufacturer designation: Motor ventilator 35 m3/h 115V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYCVF35M115 |
| Product Category | Enclosures & Junction Boxes |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan motor |
| Flow rate | Free flow rate: 35 m3/h at 50 Hz |
| Input voltage | 115 V 50/60 Hz |
| Absorbed power | 16 W 50 Hz; 14 W 60 Hz |
| Noise level < at | 32 dB |
| Height | External: 80 mm |
| Width | External: 80 mm |
| Depth | External : 25 mm |
| Cut-out dimensions | Ø 78 mm |
| Device composition | 1 axial motor |
| Warranty (in months) | 18 |
| EAN / GTIN | 3606480151491 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
