Description

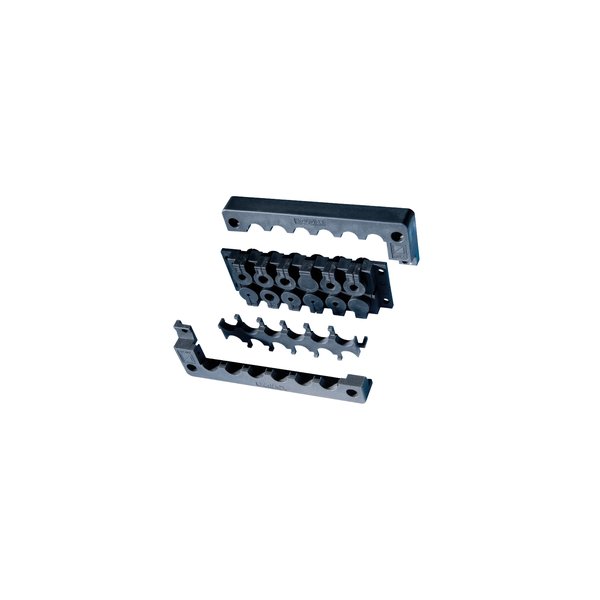

Schneider Electric NSYDCD244 — Cable Entry. Manufacturer designation: Cable entry system type Multi-CS dimensions 112 x 36 mm and 4 openings. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYDCD244 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Product or Component Type | Cable entry |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Mounting Location | Enclosure bottom |
| Cable entry | 4 grommets 0.5…0.9 in (12…24 mm) |
| Quantity per Set | Set of 1 |
| Material | Polypropylene |
| Height | 5.8 in (148 mm) |
| Width | 2.3 in (58 mm) |
| Depth | 0.6 in (15 mm) |
| Net Weight | 0.472 lb(US) (0.214 kg) |
| Cut-out dimensions | 112 x 36 mm |
| Resistance to chemical agents | Good resistance to weak acids and bases; Good resistant to alcohols; Good resistance to fuels; Good resistance to mineral oils and greases |
| Flame retardance | V0 conforming to UL 94 |
| Ambient Air Temperature for Operation | -22…212 °F (-30…100 °C) |
| IP degree of protection | IP65 IEC 60529 |
| Gtin | 3606489429034 |
| Returnability | No |
| Country of origin | FR |
| Nbr. of units in pkg. | 1 |
| EAN / GTIN | 3606489429034 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
