Description

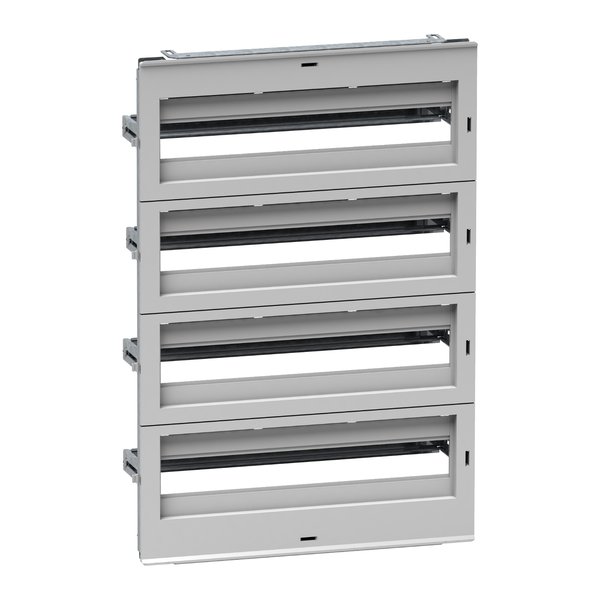

Schneider Electric NSYDLA88G — Chassis. Manufacturer designation: Modular distribution chassis 88 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYDLA88G |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose; Modular distribution application |
| Product or component type | Chassis |
| For enclosure nominal dimensions | – |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT S3D; PanelSeT CRN; PanelSeT PLM |
| Device composition | 1 chassis structure; 4 front panels with 35 mm DIN rail; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² |
| Quantity per set | Set of 1 |
| Material | Front panel: self-extinguishing insulating; Chassis structure and rails: steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element – on front with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 4 |
| Total number of 18 mm modules | 86 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 4 cut-outs |
| Height | 680 mm |
| Width | 460 mm |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 24 |
| EAN / GTIN | 3606480773877 |
| Condition | New & original |
| Availability | On request |
