Description

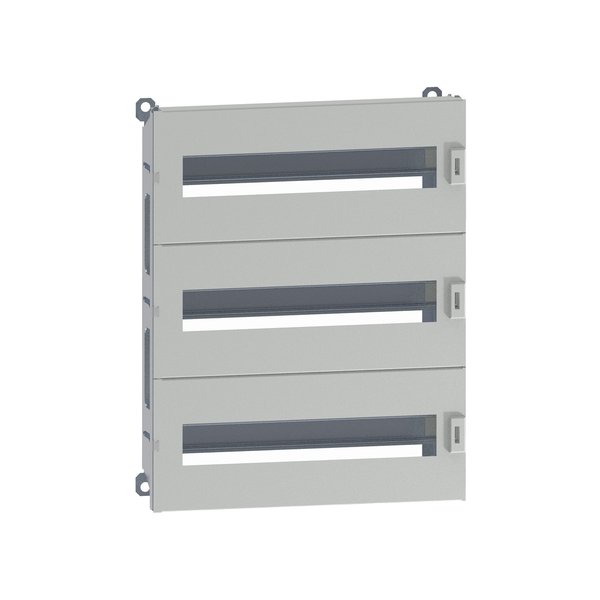

Schneider Electric NSYDLM48 — Chassis. Manufacturer designation: “Modular chassis DLM type for PanelSet WM enclosure, 48 modules, H500xW400mm.”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYDLM48 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose; Modular distribution application |
| Product or component type | Chassis |
| For enclosure nominal dimensions | – |
| Mounting location | Step slide; Front of enclosure |
| Range compatibility | PanelSeT S3D; PanelSeT CRN |
| Device composition | 1 chassis structure; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 3 front panels with 35 mm DIN rail |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Front panel: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Fixing mode | By fixing element – on front and back with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 3 |
| Total number of 18 mm modules | 48 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 3 cut-outs |
| Height | 453 mm |
| Width | 355 mm |
| Depth | 101.5 mm |
| EAN / GTIN | 3606480162527 |
| Condition | New & original |
| Availability | On request |
