Description

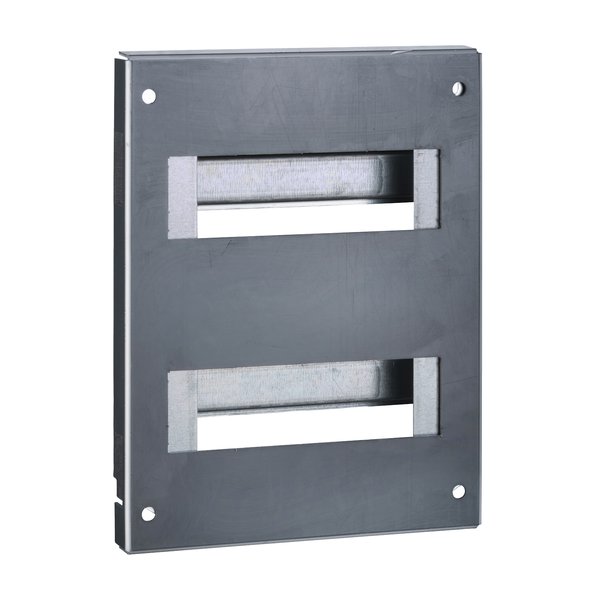

Schneider Electric NSYDLPLM18G — Chassis. Manufacturer designation: Modular dist chassis 18 modules of 18mm w/ insulating prot.plate for PLM3025. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYDLPLM18G |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Modular distribution application; Multi-purpose |
| Product or component type | Chassis |
| For enclosure nominal dimensions | – |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PLM; PanelSeT PHD |
| Device composition | 1 chassis structure; 1 front panel; 2 35 mm DIN rail |
| Additional information | IP2x not respected when chassis is mounted at 67 mm |
| Material | Front panel: self-extinguishing; Rails: galvanised steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element – on front with supports location |
| Number of horizontal rows | 2 |
| Total number of 18 mm modules | 18 |
| Type of front plate | Cut-out plate |
| Number of cut-out | 2 cut-outs |
| Height | 308 mm |
| Width | 255 mm |
| Depth | 160 mm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| EAN / GTIN | 3606480773969 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
