Description

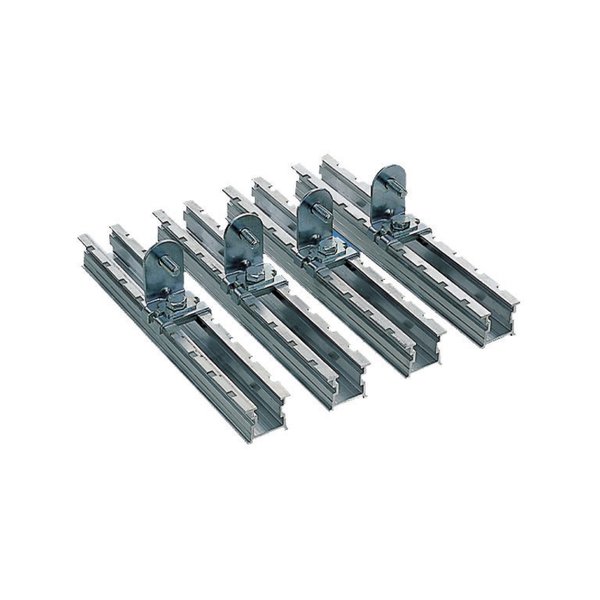

Schneider Electric NSYDPLA4 — Step Slide. Manufacturer designation: Set of 4 step slides with brackets for adjustment of mount. plate in PLA D420mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYDPLA4 |
| Product Category | Enclosures & Junction Boxes |
| Product or component type | Step slide |
| Range compatibility | PanelSeT PLA PLA; PanelSeT PHD |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – D: 420 mm |
| Mounting location | Sides of enclosure |
| Device composition | 4 sliding rails; 4 sliding support with M8 stud; fixing elements |
| Quantity per set | Set of 1 |
| Material | Sliding support: steel; Sliding rail: aluminium |
| Fixing mode | By fixing element |
| Adjustment | In depth of the plate or other accessories in steps of 12.5 mm |
| Depth | Minimun depth adjustment : 35 mm; Maximum depth adjustment : 350 mm |
| ISO thread | M8 |
| Country of origin | ES |
| Warranty (in months) | 18 |
| EAN / GTIN | 3606480194382 |
| Condition | New & original |
| Availability | On request |
