Description

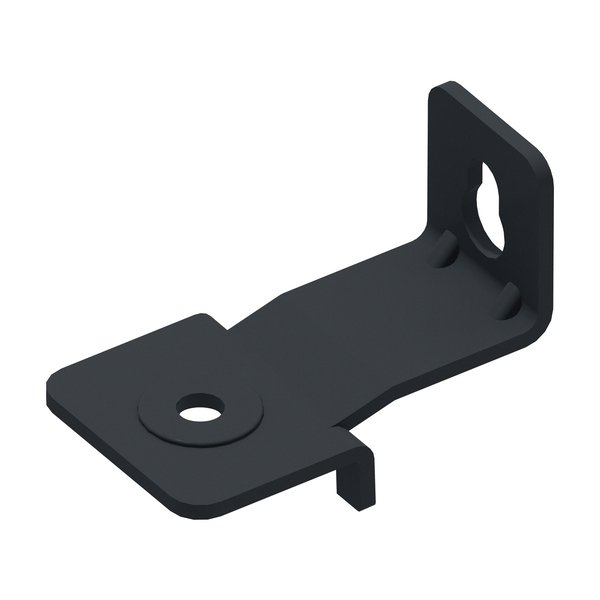

Schneider Electric NSYFMPHD — Wall Fixing Support. Manufacturer designation: Thalassa PHD outdoor heavy duty – wall fixing support. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYFMPHD |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Product specific application | Outdoor heavy duty |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 538 mm W: 500 mm D: 320 mm; – H: 788 mm W: 500 mm D: 320 mm |
| Mounting location | Top and bottom, on rear of the enclosure |
| Range compatibility | PanelSeT |
| Device composition | Fixing elements; 6 lug |
| Quantity per set | Set of 1 |
| Material | Zinc coated steel |
| Surface finish | Polyester powder |
| Fixing mode | Visible screws – from the outside location |
| Permanent permissible load | 180 kg |
| Height | 150 mm |
| Width | Enclosure nominal dimension: 500 mm |
| Depth | Enclosure nominal dimension : 320 mm |
| Country of origin | ES |
| Warranty (in months) | 18 |
| EAN / GTIN | 3606480680892 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
